JOLIET Power Equipment - Motors
Location:
Joliet, IL
Manufacturer:
JOLIET
Model:
JEC-HTM1230

Specifications

Condition:
new
Rental:
No
Division:
Equipment
Quantity:
1
Horsepower:
1,230
Drawworks make:
JOLIET
Subcategory:
Power equipment
Subcategory 2:
Support equipment
Subcategory 3:
Motors - electric

Description

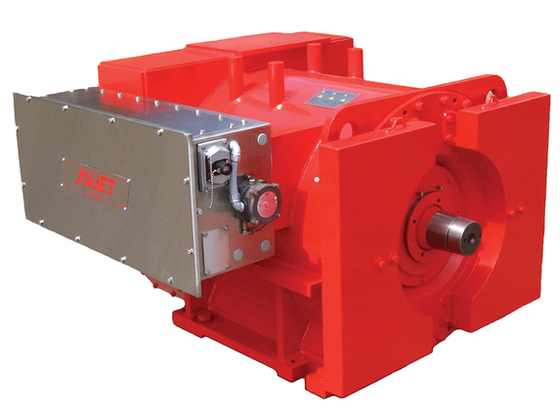

Joliet HTM1230 New Horizontal AC Drilling Motor delivers a continuous rating for mud pump and rotary table applications of 1230 HP and intermittent rating for drawworks applications of 1500 HP. Continuous rating is at 600 VAC, 1170 Amperes, 40.6 Hertz, 800/1800 RPM. Features:, Form Wound, Class 200 Insulation, Copper Alloy Rotor Bars and End Ring, High Strength Forged Steel Single Shaft Extension with New Oilfield Hub, PE & OPE Insulated Bearing, IP44 Enclosure, Pressure Sensor, Explosion Proof, Space Heater, 120 or 240 VAC, Explosion Proof, Speed Sensor Mount, Motor is dimensionally interchangeable with a GE™ 752 motor, ISO 9001:2000 Quality Program, Shrink-wrap w/Desiccant, 12/18 Month Warranty., Inverter Duty, Approx. Weight: 6,615 Lbs., 3,000 Kg, New Cushioned Export Spec. Shipping Skid, Pressurized connection box, Blower Assembly
