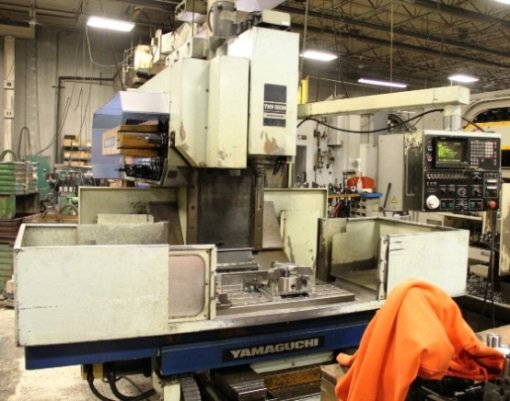

1985 36.22"X, 20.47"Y, 20.47"Z, Yamaguchi
Location:
MN
Model:
YMV-900M

Specifications

Condition:
used
Year:
1985
Stock number:
50521142
Serial:
7154704
Division:
Metalworking
Machine mfg:
Yamaguchi
Machine type:
M0185 Machining Centers, Vertical, NC & CNC

Description

Machine Type: M0185 Machining Centers, Vertical, NC & CNC
Machine Mfg: Yamaguchi
Model: YMV-900M
Serial #:7154704
Year: 1985
ControlFanuc 10M
Table working area 47.24”x19.68”
Table load capacity2200lbs
Travel X-axis36.22”
Travel Y-axis20.47”
Travel Z-axis20.47”
From Spindle end to table top7.87”~28.34”
Column face to Spindle center11.41”~31.88”
Rapid feed rates X & Y/ Z axis480ipm/400ipm
Main Spindle hp10/15 hp
Spindle Speed20~4000 rpm Hi/Lo 2 speed
Spindle TaperBT45
Number of tools ATC30
Tool Change5 sec
Machine height118.11”
Floor space138” x 110”
Gross weight19,800 lbs
