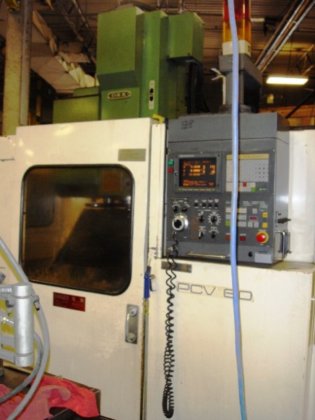

1994 36.22"X, 24.99"Y, 20.47"Z, OKK
Location:
MN
Model:
PCV60

Specifications

Condition:
used
Year:
1994
Stock number:
50514146
Mfg no:
MA45056
Serial:
157
Division:
Metalworking
Machine mfg:
OKK
Machine type:
M0185 Machining Centers, Vertical, NC & CNC

Description

Machine Type: M0185 Machining Centers, Vertical, NC & CNC
Machine Mfg: OKK
Model: PCV60
Serial #:157
Mfg No: MA45056
Year: 1994
ControlMeldas PNC
Table working area 44.09” x 25.19”
Table load capacity1764 lbs
Travel X-axis36.22”
Travel Y-axis24.99”
Travel Z-axis20.47”
From Spindle end to table top7.87”~28.34”
Column face to Spindle center33.07”
Rapid feed rates X & Y/ Z axis629.92ipm/472.44ipm
Main Spindle hp7.5kw(30min)/5.5kw
Spindle Speed100~6000 rpm
Spindle TaperCat 40
Number of tools ATC18
Tool Change2.5 sec
Machine height119.09”
Floor space110.23” x 121.25”
Gross weight12,789 lbs
