- NGR Next Generation Underwater Granulation Recycling Line Rated Up To 220 Pounds Per Hour (100 Kg) in Bensenville, IL

Location:
Bensenville, IL
Model:
A-Gran 65

Specifications

Condition:
used
Serial number:
UWGQ03452004
Stock number:
46201001
Type:
Recycling Line
Subcategory:
Plastics equipment

Description

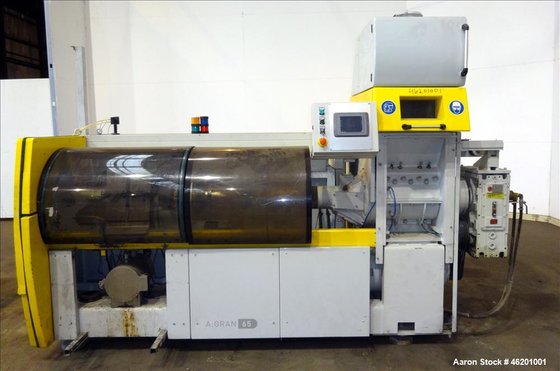

46201001 Used- NGR Next Generation Underwater Granulation Recycling Line Rated Up To 220 Pounds Per Hour (100 Kg). System consists of: (1) NGR 2-1/2" (65mm) cutter feeder single screw extruder, type A-Gran 65. Approximate 33 to 1 L/D ratio. Electrically heated, air cooled, dual side vented barrel with maintenance covers and a Sihi modular vacuum pump system, Model LEMA51AZAAE0A7AW, Serial# D-03-80177-01, driven by a 1.5 kw motor, with a Sondex type S41C heat exchanger, Serial# 43044047, and Sterling separator tank. Extruder and grinder both driven by (1) 45 kw motor thru a PIV gearbox, type PC16-T60-H13-20, ratio 21.1 to 1. Enclosed feed throat with a rotary cutter, (2) pneumatic piston ram, tapered feed screw, and a feed hopper with sight window. Approximate 42" centerline height. Includes a control panel with a Vacon drive, and an operator panel with a Mitsubishi E1071 touch screen. Serial# UWGQ-03045, built 2004. (1) Kreyenborg screen changer, Model AV025, Serial# 19562, built...
