Location:
Bensenville, IL
Manufacturer:
Nash
Model:
AT3004E

Specifications

Condition:
used
Serial number:
77U5205
Stock number:
46147002
Hp:
200
Cfm:
2590
Motor:
Yes
Mounted:
Frame Mounted
Material:
Cast Iron
Motor hp:
200
Motor rpm:
1775
Inlet size:
8"
Motor type:
Gearmotor
Motor cycle:
60
Motor phase:
3
Outlet size:
8"
Motor voltage:
208-230/460 Volt
Rpm (rotation):
435
Overal dimensions:
210"L x 69"W x 86"T
Material of construction:
Carbon Steel
Subcategory:
Pumps

Description

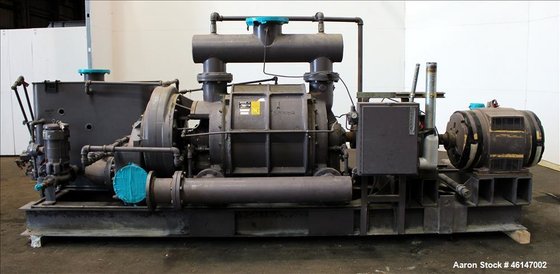

46147002 Unused- Nash Main Condenser Exhaust System, Model AT-3400E, Carbon Steel. Consists of: (1) Nash 2 stage liquid ring vacuum pump, model AT-3004E, test #77U5205, 435 rpm. Approximately 28.5" maximum vacuum, 2590 cfm. Driven by 200 hp, 3/60/230/460 volt, 1775 rpm motor thru a Falk gear drive, ratio 4.095 to 1. (1) Inlet manifold, (1) first stage discharge manifold, (1) second stage inlet and discharge manifold, (1) separator tank, and (1) 3 hp centrifugal pump. Skid mounted.
