Location:
Bensenville, IL
Manufacturer:
Dedietrich reactors

Specifications

Condition:
used
Stock number:
46155001
Bottom:
Dished Bottom
In psi:
130/ FV
Gallons:
1000
Opening:
17-1/2" w/ cover & 4" SG, (3)8",(2)7",(3)4"
Diameter:
60"
Jacket psi:
90
Year built:
1998
Outlet size:
6" cbo,
Opening cover:
Yes
Straight side:
79"
Top head style:
Dished Head
Outlet location:
Bottom
Overal dimensions:
192x82x82
National board no.:
846
Horizontal or vertical:
Vertical
Material of construction:
Glass Lined

Description

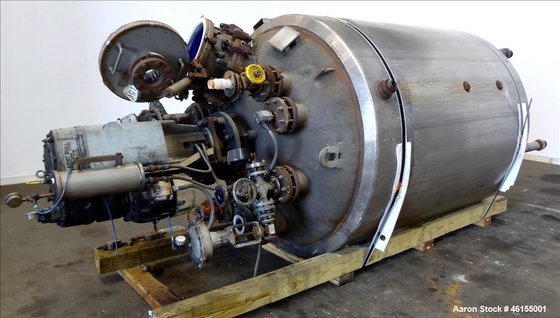

46155001 Used- De Dietrich Glass Lined Reactor, 1000 Gallon, Type 3009 Glass, Vertical. Approximately 63" diameter x 66-1/8" straight side. Welded dish top, dished bottom. Internal rated 130 psi/Full Vacuum at -20 to 500 degrees F. Carbon steel jacket rated 90 psi at -20 to 500 degree F. Top mounted Philadelphia agitator, size PTF-08, serial #83LGF1244, 17.5 to 1 ratio, 1750 input rpm. Crylock agitator driven by a 10 hp, 3/60/230/460 volt, 1745 rpm motor, fin baffle. Top openings: 18" manway with a 4" sight glass in the cover, (4) 4", 6", (3) 8". 4" Center bottom outlet. Shell has outer insulation. Mounted on (4) legs. Serial #1941, National Board #846, built 1998.
