Location:
Bensenville, IL
Manufacturer:
DCI reactors

Specifications

Condition:
used
Serial number:
96PH53641B
Stock number:
46098001
Bottom:
Dished Bottom
Gallons:
105
Mounted:
Mounted on Casters
Opening:
Top: (1) 4", (3) 4" tri clamp, (1) 3" tri clamp, (7) 2" tri clamp. Side: (1) 1-1/2" tri clamp.
Diameter:
30"
Jacket psi:
115
Year built:
1996
Outlet size:
2" tri clamp center bottom outlet, 4" side bottom outlet
Interior psi:
50
Straight side:
44"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
50/-15
Overal dimensions:
57"L x 48"W x 78"T
Pressure - jacket:
115/-15
National board no.:
3381
Internal temperature:
-20 to 350 degree F
Temperature - jacket:
-20 to 350 degrees F
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel

Description

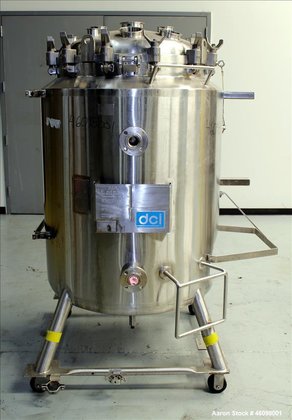

46098001 Used- DCI Reactor, 400 Liter (105.66 Gallon) 316L Stainless Steel, Vertical. 30" Diameter x 44" straight side. Dished top and bottom heads. Internal rated 50/-15 psi at -20 to 350 degrees F. Dimple jacket rated 115/-15 at 350 degrees F. Openings top (1) 4", (3) 4" tri clamp, (1) 3" tri clamp, (7) 2" tri clamp. Side: (1) 1-1/2" tri clamp. 2" Center bottom outlet, 4" side bottom outlet. Mounted on (4) legs with casters. Serial# 96PH53641B. National Board# 3381. Year 1996.
