Location:
Bensenville, IL
Manufacturer:
Precision Stainless
Model:
130 Liter

Specifications

Condition:
used
Stock number:
46130002
Bottom:
Dished Bottom
Gallons:
34.3
Mounted:
Mounted on 4 Legs
Opening:
3(3) 1-1/4", (2) 4" with 2" sight glass, (2) 2", (1) 3-1/2" center
Diameter:
16"
Jacket psi:
100
Year built:
1992
Outlet size:
4"
Interior psi:
50
Straight side:
37-1/2"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
50
Number of baffles:
4
Overal dimensions:
48"L x 48"W x 84"T
Pressure - jacket:
100
National board no.:
4105
Internal temperature:
-20 to 300 degrees F
Temperature - jacket:
-20 to 300 degrees F
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel

Description

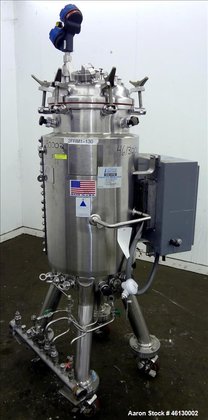

46130002 Used- Precision Stainless Reactor, 130 Liters (34.3 Gallon), 316L Stainless Steel, Vertical. 16" Diameter x 37-1/2" straight side, clamp-on dished top, dish bottom. Internal rated 50 psi at -20 to 300 degrees F. Vacuum design 15 psi. 304L Stainless steel dimple jacket rated 100 psi at -20 to 300 degrees F. (4) Sidewall baffles. Openings: top (3) 1.25", (2) 4" with 2" sight glass, (2) 2" tri clamp, 3.5" drive; 4" center bottom outlet. Mounted on 4 stainless steel legs. Serial #5737-1. National Board #4105. Built 1992.
