Location:
Bensenville, IL
Manufacturer:
DCI

Specifications

Condition:
used
Serial number:
92PH44844
Stock number:
46045001
Bottom:
Dished Bottom
Gallons:
11,000
Mounted:
Mounted on 4 Legs
Diameter:
84"
Jacket psi:
65
Year built:
1992
Interior psi:
30
Straight side:
158"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
30/-10
Pressure - jacket:
65/-15
National board no.:
1971
Internal temperature:
-20 to 275 degrees F
Temperature - jacket:
-20 - 312 degrees F
Horizontal or vertical:
Vertical
Material of construction:
304 Stainless Steel

Description

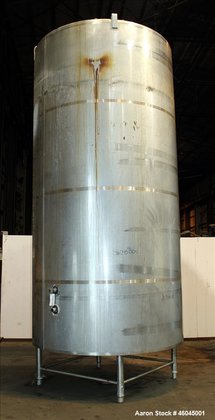

46045001 Used- DCI Reactor, 4,000 Gallon, 316L Stainless Steel, Vertical. 84" Diameter x 158" straight side, dished top and bottom. Internal rated 30/-10 psi at -20 to 275 degrees F, 23 square feet of bottom side wall dimple jacket rated 65/-15 psi at -20 to 312 degrees F. Insulated with 3" Cerawool and 304 stainless steel sheathing. Openings top (6) 1-1/2" tri-clamp, 2" tri-clamp, 4" tri-clamp, 18" man way, no cover. 3" Tri-clamp center outlet. Mounted on (4) 304 stainless steel legs. Serial# 92PH44844, National Board# 1971, built 1992.
