Location:
Bensenville, IL
Manufacturer:
Pfaudler tanks
Model:
2400 Chemstor

Specifications

Condition:
used
Serial number:
J080517
Stock number:
46270003
Bottom:
Dished Bottom
Gallons:
2,200
Opening:
18" manway with cover, (5) 4", (5) 3".
Diameter:
66"
Year built:
2009
Straight side:
142"
Top head style:
Dished Head
Internal pressure:
150 PSI
Overal dimensions:
102" tall x 180" long x 80" wide
National board no.:
52618
Internal temperature:
-20 to 350 degrees F
Horizontal or vertical:
Horizontal
Material of construction:
Glass Lined
Subcategory:
Glass lined tanks

Description

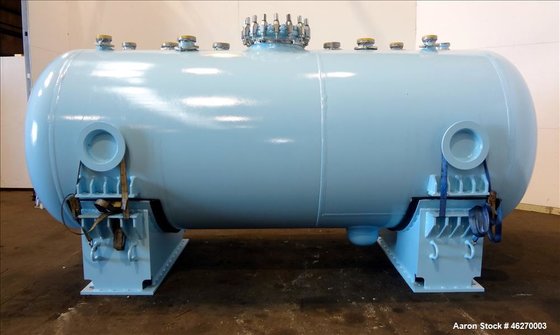

46270003 Unused- Pfaudler Glass Lined Chemstor Pressure Tank, 2,400 Gallon, 9114 Blue Glass, Horizontal. 66" Diameter x 142" straight side, 2:1 elliptical heads. Internal rated 150 psi/full vacuum at -20 to 350 degrees F. Top openings: (5) 3”, (5) 4", (1) 18" manway with cover. 12" Bottom sump pit, no outlet. Mounted on (2) saddles. Serial #J080517, National Board #52168. Built 2009.
