Location:
Bensenville, IL
Manufacturer:
Pfaudler tanks
Model:
3000 Chemstor

Specifications

Condition:
used
Serial number:
J080518
Stock number:
46270002
Bottom:
Dished Bottom
Gallons:
3,000
Opening:
18" manway with cover, (11) 4"
Diameter:
78
Year built:
2009
Straight side:
140
Top head style:
Dished Head
Internal pressure:
150 PSI
Overal dimensions:
186" x 94" x 108"
National board no.:
52169
Internal temperature:
-20 to 450 degrees F.
Horizontal or vertical:
Horizontal
Material of construction:
Glass Lined
Subcategory:
Glass lined tanks

Description

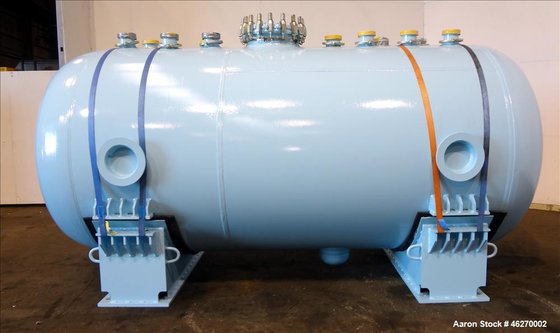

46270002 Unused- Pfaudler Glass Lined Chemstor Pressure Tank, 3,000 Gallon, 9114 Blue Glass, Horizontal. 78" Diameter x 140" straight side, 2:1 elliptical heads. Internal rated 150 psi/full vacuum at -20 to 350 degrees F. Top openings: (11) 4", (1) 18" manway with cover. 12" Bottom sump pit, no outlet. Mounted on (2) saddles. Serial #J080518, National Board #52169. Built 2009.
