Top Seller
Location:
Lincolnwood, IL
Manufacturer:

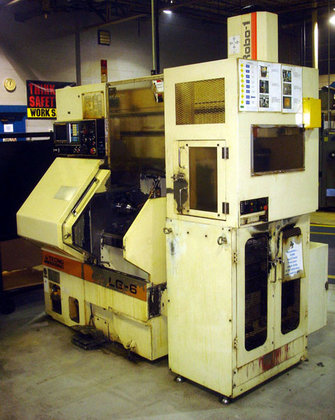

Wasino lathes
Spindle Bore:
1.8"
Spindle Nose:
A2-4

Specifications

Condition:
used
Year:
1998
Stock number:
cnclgx
Tools:
Gang
Main motor:
5 HP
Spindle bore:
1.8"
Spindle nose:
A2-4
Spindle speed:
5000 RPM
X-axis travel:
11.8"
Z-axis travel:
11.2"
Machine weight:
3750 lbs
Max swing over bed:
15.75"
Max machining length:
2.4"
Max turning diameter:
2.4"
Max diameter bar capacity:
1.5"
Rapid traverse rates (x / z):
470/630 IPM
Machine dimensions (l x w x h):
66" x 66" x 70"
Subcategory:
Cnc

Description

Equipped With:
Fanuc O-T CNC Control. S-Robi-1 Gantry Loader-Unloader with Trays. Mist Colelctor. Coolant. Chip Conveyor. Gang Tool Slide. Hardinge 16C Collet Chuck. Miscellaneous Tool Holders.
