2001 PEDDINGHAUS 110/20 PUNCHING (SINGLE

2001 PEDDINGHAUS 110/20 PUNCHING (SINGLE END) [UQ-010022] in United States

Location:
United States
Price:
$12,560 USD
Manufacturer:
Peddinghaus
Model:
110/20

Specifications

Condition:
used
Year:
2001
Recnum:
UQ-010022
Comments:
An exceptionally well-maintained machine!
Machtype:
PUNCHING (SINGLE END)
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
550 V, 60 Cy, 3 Ph.
Appr. repl. cost:
42000

Description

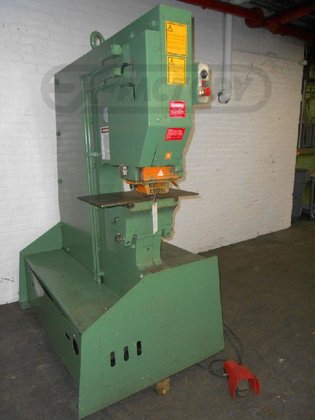

110-Ton PEDDINGHAUS Single-End Hydraulic Punch new in 2001.

-- Punch Capacities: 1-1/4" hole in 1" plate (Mild steel); 4" up to 14" Channels in flange; 4" up to 12" I-beams in flange; 4" up to 16" Channels in web; 4" up to 21" I-beams in web.

-- Specifications: 40 SPM at 0.40" Stroke length; 21 SPM at 1.20" Stroke length; 14 SPM at 2" Stroke length; 20" Throat depth; 43-3/8" Working height; 10 HP Main motor; 26-1/2 Gallon oil resevoir capacity.

-- Equipped with: Stroke control, job preset stroke and full stroke, Universal die block, Quick change setup, Electric foot switch operation.

-- Punch comes with assortment of punches and dies.
