Location:
Navasota, TX

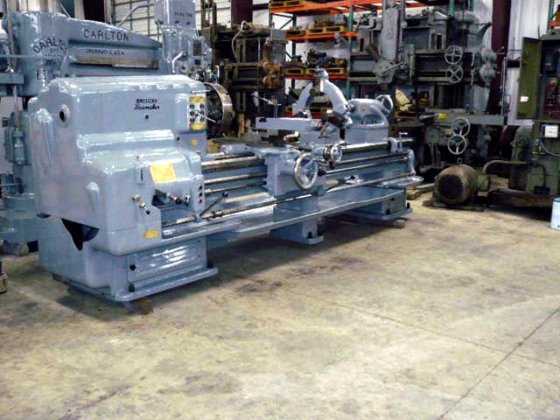

Manufacturer:
American lathes
Model:
20 Raised
Spindle Nose:
D1-6

Specifications

Condition:
used
Year:
1954
Serial number:
74336-54
Stock number:
L3000162
Feeds:
.0033 To .200 IPR
Height:
144"
Weight:
15,000 Lbs.
Chuck size:
18" 4 Jaw
Main motor:
15 Hp.
Coolant pan:
Yes
Floor space:
60" X 255"
Thread dial:
Yes
Spindle hole:
2"
Spindle nose:
D1-6
Condition info:
Very Good
Threads metric:
No
Center distance:
100"
Compound travel:
4"
Tail stock taper:
# 4Morse
Taper attachment:
No
Threads inch (66):
1 To 60 TPI
Spindle speeds (27):
26 To 1,600 Rpm's
Swing over bed ways:
30"
Carriage length on bed:
26-3/4"
Swing over cross slide:
20"
Hardened and ground way:
Yes
Tail stock quill travel:
10"
Tail stock quill diameter:
4"
Steady rest roller type (12" capacity):
Yes
Subcategory:
Engine

Description

Swing Over Bed Ways 30"
Swing Over Cross Slide 20"
Compound Travel 4"
Carriage Length On Bed 26-3/4"
Center Distance 100"
Spindle Hole 2"
Spindle Speeds (27) 26 To 1,600 Rpm's
Spindle Nose D1-6
Chuck Size 18" 4 Jaw
Feeds .0033 To .200 IPR
Threads Inch (66) 1 To 60 TPI
Threads Metric No
Tail Stock Quill Diameter 4"
Tail Stock Quill Travel 10"
Tail Stock Taper # 4Morse
Main Motor 15 Hp.
Floor Space 60" X 255"
Height 144"
Weight 15,000 Lbs
Coolant Pan Yes
Taper Attachment No
Thread Dial Yes
Hardened And Ground Way Yes
Steady Rest Roller Type (12" Capacity) Yes
Note: Machine Will Be Cleaned, Painted And
Cycled.
Condition Very Good
