Location:
Navasota, TX
Model:
3470 Lot 51
Spindle Nose:
A - 11

Specifications

Condition:
used
Year:
1964
Serial number:
1969602
Stock number:
L630452
Weight:
12,500 Lbs
Coolant:
Yes
Chuck size:
15" 4- Jaw
Feeds long:
.005 To .167 I.P.R.
Main motor:
20 / 40 Hp 440 Volts
Feeds cross:
.0025 To .082 I.P.R.
Floor space:
144" L. X 83" W.
Spindle hole:
3-3/4"
Spindle nose:
A - 11
Condition info:
Good
Machine height:
64"
Spindle speeds:
32 To 1117 Rpm's
Center distance:
43"
Fixed rear turret:
Yes
Slide tool holders:
1
Flange holders long:
2
Swing over bed ways:
20-1/2"
Flange holders short:
2
Swing over cross slide carriage:
16"
Tool post 4 way on front carriages:
Yes
Rapid traverse front & rear carriages:
Yes
Subcategory:
Turret saddle type

Description

Equipped With:

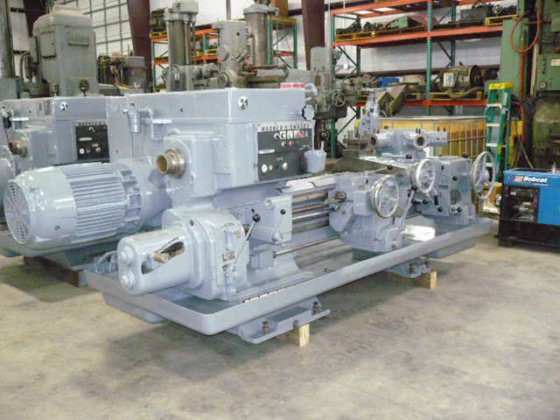

Note: Machine Has Had Both Aprons And Rapid Traverse Boxes Reconditioned. New Feed And Rapid Shafts. Head Stock WHas Been Flushed And New Oil And Filters. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice
