Location:
Melbourne, Australia
Manufacturer:
N/A
Model:
Synroc rotary calcining furnace

Specifications

Condition:
used
Stock number:
19132
Drying temperature:
500 C - 600 C
Subcategory:
Rotary dryer

Description

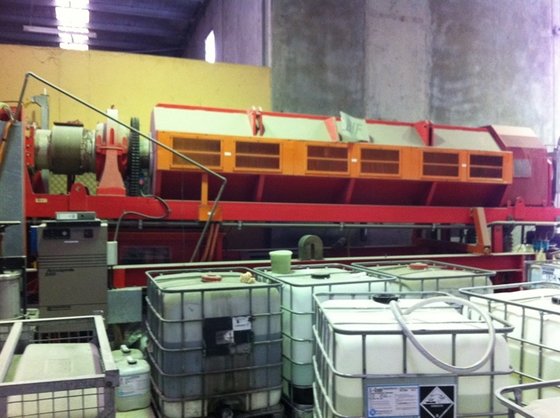

Used- Rotary Calcining furnace is used to dry and calcine minerals in powder form or a slurry under a protective atmosphere:
Approx overall size is 9m long X 3m high and 2m wide, the barrel length is aprox 7m long X tube is 305mm Die and is constructed from stainless steel.
Drying Temperature : 500 C - 600 C
Calcining Temperature 750 C - 800 C
Max Operating Temp 900 C
Residence time 1 - 2 Hours
Production 10 KG Solids/Hr
Atmosphere 3% H2/N2
