Location:
Bensenville, IL
Manufacturer:
Industrial Filter
Model:
122.902 60

Specifications

Condition:
used
Stock number:
46361007
Sqft:
614
Mounted:
Mounted on 4 Legs
Material:
CS
Inlet size:
3.5"
Year built:
1988
Filter area:
614
Outlet size:
4.5"
Outlet location:
Bottom
Internal pressure:
70 psi
Overal dimensions:
250"L x 80"W x 102"T
Internal temperature:
310 degrees f.
Material of construction:
Carbon Steel
Subcategory:
Filters
Subcategory 2:
Pressure leaf filters

Description

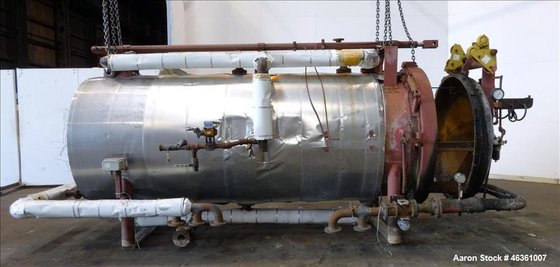

46361007 Used- Industrial Filter Horizontal Pressure Leaf Filter, Model D, Type 122.902, Series 60-6-24, Carbon Steel. Approximately 614 square foot filter area (requires filter leaves). Designed for approximately 30,000 lbs of production per hour. Shell 60" diameter x approximately 152" straight side. Dished head, (1) removable. Insulated. Internal rated 70 psi at 310 degrees F. Exterior rated 15 psi at 310 degrees F. (Missing leaves.) Openings: top (4) 3-1/2"; heads (1) 6", (2) 2"; (3) 4-1/2" bottom outlets. Mounted on (4) carbon steel legs. Serial #F 20369. Built 1988. National Board #3216.
