- Paul O. Abbe Trunnion Mounted Jar Mill, Model 5 in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Paul O Abbe
Model:
5

Specifications

Condition:
used
Serial number:
A42350
Stock number:
46324003
Hp:
.75
Dia (in):
20.5
Len (in):
17
Category:
Mills
Subcategory:
Jar mills

Description

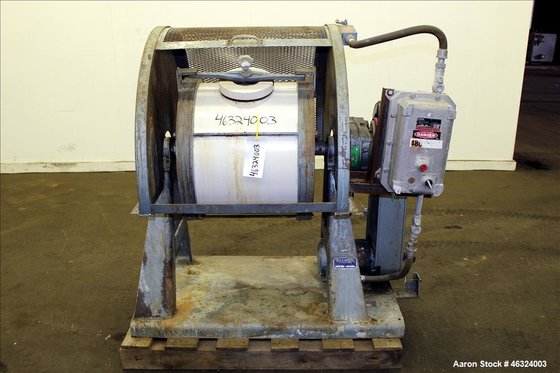

46324003 Used- Paul O. Abbe Trunnion Mounted Jar Mill, Model 5. Total volume 24.25 gallons. Porcelain jar 20-1/2" diameter x 17" straight side. Driven by 3/4 hp, 3/60/208-230/460 volt, 1140 rpm motor thru a Dodge torque arm reducer, ratio 23.45 to 1, approximate drum speed 12 to 35 rpm. 6" Inlet/outlet with cover and clamp. Mounted on carbon steel legs with a common base. Serial #A42350, built 1990.
