Location:
Bensenville, IL
Manufacturer:
Pureflo
Model:
600L
Size:
6-3/8" flange, with 1-1/2" tri clamp on side

Specifications

Condition:
used
Serial number:
93/B41078-2
Stock number:
46371006
Bottom:
Dished Bottom
Gallons:
158
Mounted:
Mounted on 4 Legs
Opening:
top:(1) 22" manway (no lock down bolts), (4) 1-1/2" tri clamp, side: (1) 4" tri clamp, (2) 2-1/8" nipple, (1) 1-1/2" tri clamp, (1) 1-1/2" nipple, (1) 1-3/8" round bar
Diameter:
36"
Presfulvac:
40 psi/15FV
Year built:
1991
Outlet size:
6-3/8" flange, with 1-1/2" tri clamp on side
Agitator type:
Top Entering
Straight side:
36"
Agitator model:
P6X05R
Top head style:
Dished Head
Outlet location:
Bottom
Agitator location:
Top Center
Internal pressure:
40
Overal dimensions:
44"L X 40"W X 86"T
National board no.:
3688
Internal temperature:
-20 to 300 degrees F
Agitator manufacturer:
Lightin
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

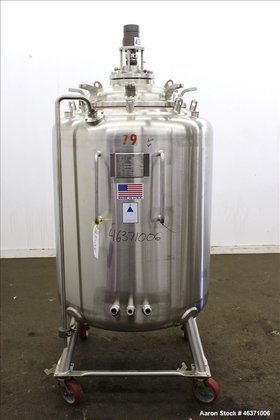

46371006 Used- Precision Stainless Pressure Tank, 600 Liter (158.50 Gallon), 316L Stainless Steel, Vertical. 36" Diameter x 36" straight side, dished top and bottom heads. Vessel rated 40 psi at -20 to 300 degrees F, vacuum design 14.7 psi. Top entering air operated Lightnin agitator (no shaft), model P6X05R, serial #93/B41078-2. Openings: top 22" manway (no lock down bolts), (4) 1-1/2" tri-clamp; side 4" tri-clamp, (2) 2-1/8" nipple, 1-1/2" tri-clamp, 1-1/2" nipple, 1-3/8" round bar; 6-3/8" center bottom outlet flange. Mounted on 4 stainless steel legs with casters. Serial #5389-1. National Board #3688. Built 1991.
