Location:
Naples, FL
Price:
$112,000 USD

Specifications

Condition:
used
Year:
2009
Stock number:
16676
Type:
POWER PIPE
Width:
79.4"
Height:
114.5"
Length:
118"
Thrust:
24,800 lb
Weight:
Lined: 90 lb
Max flow:
50 gpm
Pullback:
30,000 lb
Fuel type:
Diesel
Max speed:
@ 2000 rpm: 156 hp
Fluid tank:
42 gal
Entry angle:
10° to 16°
Displacement:
275 in3
Max pressure:
1500 psi
Pipe diameter:
2.38"
Joint diameter:
3"
Make and model:
Cummins QSB4.5
Min bend radius:
175'
Rated engine rpm:
2300 rpm
Max spindle speed:
225 rpm
Min bore diameter:
4.5"
Ground drive speed:
Forward: 2.4 mph
Max carriage speed:
(thrust): 120 fpm
Max spindle torque:
4000 ft/lb
Number of cylinders:
4
Hydraulic tank capacity:
27 gal
Weight of pipe and large box:
(48 pipe): 5390 lb (2445 kg)
Weight of pipe and small box:
(25 pipe): 2972 lb
Manufacturer's gross hp rating:
148 hp
Subcategory:
Hdd drills

Description

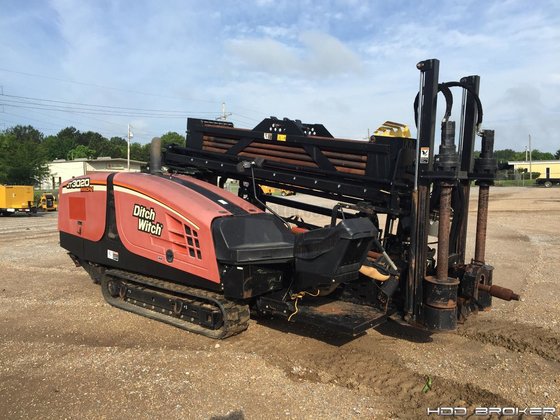

General Description: 2009 Ditch Witch JT3020 Mach 1 Directional Drill: -1,800 hours
Pipe: (57) Pieces (570') of Drill Pipe.
