Location:
Bensenville, IL
Manufacturer:
Rogers evaporators
Model:
2 Effect

Specifications

Condition:
used
Stock number:
45695002
Effects:
2
Material:
SS

Description

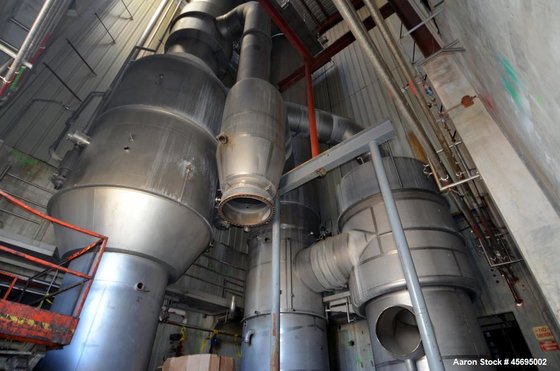

45695002 Used- C.E. Rogers MVR Mechanical Vapor Re-compression Double Effect Evaporator, Stainless Steel. Approximate 90,000 pounds per hour, 13% to 16% solids Whey capacity out. Consists of (1) Evaporator effect housing approximate 64" diameter x 556" tall with tubes, removable top cover, and separator. (1) Pasteurizer approximate 16" diameter x 190" long with tubes. (1) Evaporator effect housing approximate 84" diameter x 556" tall with tubes, removable top cover. (1) Vapor removal tank approximate 108" diameter 120" tall. (1) Condenser approximate 10" diameter x 34 tall. (1) Holding tube assembly. (2) Condensers. (1) Pillar Turbo Fan with a 600 hp motor and an Allen-Bradley PowerFlex panel. Miscellaneous piping, spare 600 hp fan motor, and pumps. Built 1994.
