Location:
Bensenville, IL
Model:
AKT 34/48X240

Specifications

Condition:
used
Serial number:
DK2007239
Stock number:
46379012
Sqft:
1185
Mounted:
Saddle Mounted
Tubemtl:
TP405SS
Shellmtl:
CS
Year built:
2008
Tube length:
20'
Tube pressure:
314 FV
Shell material:
Carbon Steel
Shell pressure:
356 FV
Square footage:
1185.16
Tube temperature:
680 degrees F
Overal dimensions:
352"L X 75"W X 92"T
Shell temperature:
850 degrees F
National board no.:
2492
Size of tube openings:
6"
Horizontal or vertical:
Horizontal
Size of shell openings:
2", 8"
Number of tube openings:
2
Number of shell openings:
2

Description

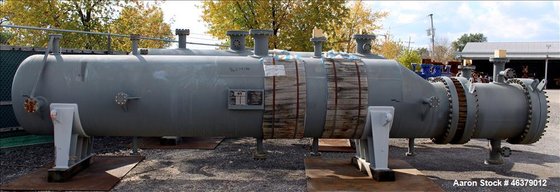

46379012 Unused- Daekyung Machinery & Engineering 8 Pass Shell & Tube Heat Exchanger, 1,185 Square Feet, Horizontal. Carbon steel shell rated 356 psi/ full vacuum at -20 to 680 degrees F. (238) 1" Diameter x 20' long TP405 stainless steel tubes rated 314 psi/ full vacuum at -20 to 850 degrees F. Heads 410 stainless steel clad. Openings: shell 2", 8"; tubes (2) 6". Saddle mounted. Serial #DK2007-239, National Board #2492. Built 2008.
