Location:
Bensenville, IL
Model:
BEU 35X240

Specifications

Condition:
used
Serial number:
DK2007237
Stock number:
46379007
Sqft:
3193
Mounted:
Saddle Mounted
Tubemtl:
405 Stainless Steel
Shellmtl:
Carbon Steel
Year built:
2008
Tube length:
20'
Head material:
Carbon Steel
Tube pressure:
700 psi FV
Shell material:
Carbon Steel
Shell pressure:
550 psi FV
Square footage:
3193
Tube temperature:
-20 to 750 degrees F
Overal dimensions:
350"L X 62"W X 122"T
Shell temperature:
-20 to 650 degrees F
National board no.:
2489
Size of tube openings:
6", 8"
Horizontal or vertical:
Horizontal
Size of shell openings:
6", 12"
Number of tube openings:
2
Number of shell openings:
2

Description

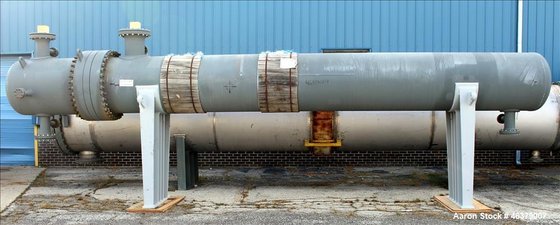

46379007 Unused- Daekyung Machinery & Engineering U Tube Heat Exchanger, 3,193 Square Feet, Horizontal, Carbon steel shell rated 550 psi/ full vacuum at -20 to 650 degrees F. (396) 3/4" Diameter x 20' long TP405 stainless steel tubes rated 700 psi / full vacuum at -20 to 750 degrees F. Openings: shell 12", 6", tubes 6", 8". Saddle mounted. Serial #DK2007-237, National Board #2489. Built 2008.
