Location:
Bensenville, IL
Model:
CPL75-V-400

Specifications

Condition:
used
Stock number:
46379001
Sqft:
2751
Material:
316L SS
Year built:
2008
Head material:
Carbon Steel
Tube material:
316L Stainless Steel
Shell material:
Carbon Steel
Square footage:
2,751.3
Tube temperature:
-20 to 350 degrees F
Overal dimensions:
122"L X 72"W X 72"T
National board no.:
18533
Size of tube openings:
8"
Horizontal or vertical:
Vertical
Size of shell openings:
8"
Number of tube openings:
2
Number of shell openings:
2

Description

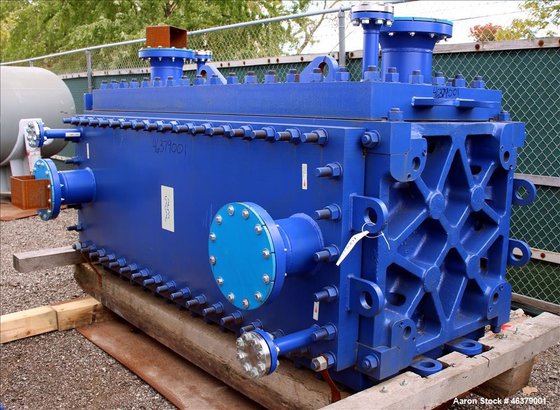

46379001 Unused- Alfa Laval Compabloc Heat Exchanger, Model CPL75-V-400, 2,751.3 Square Feet, Vertical. Carbon steel shell. (400) 316L Stainless steel plates rated hot side 260 psi/ full vacuum at -20 to 350 degrees F, cold side 170 psi/ full vacuum at -20 to 350 degrees F. (6) Passes on hot side, (6) passes on cold side. Plate thickness 0.02". Openings: shell (2) 8", plates (2) 8". Serial #50770. National Board #18533. Built 2008.
