Location:
Bensenville, IL
Model:
AES 52X288

Specifications

Condition:
used
Serial number:
DK2007090C
Stock number:
46379024
Sqft:
6179
Mounted:
Saddle Mounted
Tubemtl:
TP405SS
Shellmtl:
Carbon Steel
Year built:
2008
Head material:
Carbon Steel
Tube material:
Carbon Steel
Tube pressure:
503 psi FV
Shell material:
Carbon Steel
Shell pressure:
425 psi FV
Square footage:
6,179
Tube temperature:
-20 to 650 degrees F
Overal dimensions:
32'7"L x 7'2"W x 9'T
Shell temperature:
-20 to 650 degrees F
National board no.:
2419
Size of tube openings:
10"
Horizontal or vertical:
Horizontal
Size of shell openings:
16"
Number of tube openings:
2
Number of shell openings:
2

Description

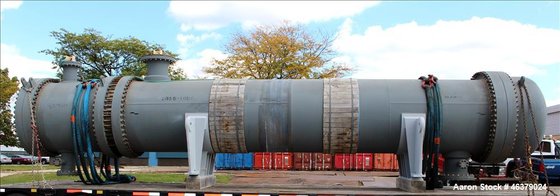

46379024 Unused- Daekyung Machinery & Engineering 8 Pass Shell & Tube Heat Exchanger, 6,179 Square Feet, Horizontal. Carbon steel shell rated 425 psi/ full vacuum at -20 to 650 degrees F. (1,008) 1" Diameter x 24' long TP405 stainless steel tubes rated 503 psi/ full vacuum at -20 to 650 degrees F. Carbon steel heads. Openings: shell (2) 16", tubes (2) 10". Saddle mounted. Serial #DK2007-090C, National Board #2419. Built 2008.
