Location:
Bensenville, IL
Model:
BKU 34/56X240

Specifications

Condition:
used
Serial number:
DK2007230
Stock number:
46379027
Sqft:
3100.14
Mounted:
Saddle Mounted
Tube psi:
195 psi FV
Shell psi:
150 psi FV
Year built:
2008
Tube length:
20'
Head material:
Carbon Steel
Tube material:
Carbon Steel
Tube pressure:
195 psi FV
Shell material:
Carbon Steel
Shell pressure:
150 psi FV
Square footage:
3100.14
Tube temperature:
650 degrees F
Overal dimensions:
325"L X 86"W X 102"T
Shell temperature:
650 degrees F
National board no.:
2479
Size of tube openings:
8", 6"
Horizontal or vertical:
Horizontal
Size of shell openings:
(2) 12", 6"
Number of tube openings:
2
Number of shell openings:
3

Description

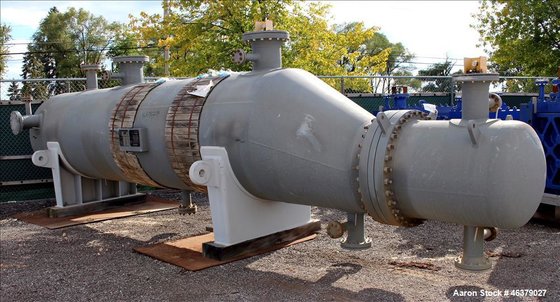

46379027 Unused- Daekyung Machinery & Engineering U Tube Heat Exchanger, 3,100 Square Feet, Carbon Steel, Horizontal. Shell rated 150 psi/ full vacuum at 650 degrees F. (764) 3/4" Diameter x 20' long tubes rated 195 psi/ full vacuum at 650 degrees F. Openings: shell (2) 12", (1) 6"; tubes 8", 6". Saddle mounted. Serial #DK2007-230, National Board #2479. Built 2008.
