Location:
Bensenville, IL
Model:
AJ12S 54X216

Specifications

Condition:
used
Serial number:
DK2007235
Stock number:
46379013
Sqft:
4785
Mounted:
Saddle Mounted
Tube psi:
470 psi FV
Shell psi:
358 psi FV
Year built:
2008
Tube length:
18'
Head material:
Carbon Steel
Tube material:
Carbon Steel
Tube pressure:
470 psi FV
Shell material:
Carbon Steel
Shell pressure:
358 psi FV
Square footage:
4625
Number of passes:
Double
Tube temperature:
650 degrees F
Overal dimensions:
338"L x 88"W x 102"T
Shell temperature:
650 degrees F
National board no.:
2486
Size of tube openings:
24"
Horizontal or vertical:
Horizontal
Size of shell openings:
(2) 18", 24"
Number of tube openings:
2
Number of shell openings:
3

Description

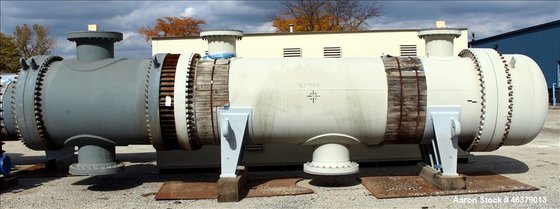

46379013 Unused- Daekyung Machinery & Engineering 2 Pass Shell & Tube Heat Exchanger, 4,625 Square Feet, Carbon Steel, Horizontal. Shell rated 358 psi/ full vacuum at -20 to 650 degrees F. (1,078) 1" Diameter x 18' long tubes rated 470 psi/ full vacuum at -20 to 650 degrees F. Openings: shell 24", (2) 18"; tubes (2) 24". Saddle mounted. Serial #DK2007-235, National Board #2486. Built 2008.
