Location:
Bensenville, IL
Model:
AJ21S 58X288

Specifications

Condition:
used
Serial number:
DK2007231
Stock number:
46379011
Sqft:
6633.6
Mounted:
Saddle Mounted
Tube psi:
297 psi FV
Shell psi:
382 psi FV
Year built:
2008
Tube length:
24' 0"
Head material:
Carbon Steel
Tube material:
Carbon Steel
Tube pressure:
297 FV
Shell material:
Carbon Steel
Shell pressure:
382 FV
Square footage:
6633.6
Number of passes:
4
Tube temperature:
-20 to 650 degrees F
Overal dimensions:
34' L x 8' W x 130"T
Shell temperature:
-20 to 650 degrees F
National board no.:
2480
Size of tube openings:
14"
Horizontal or vertical:
Horizontal
Size of shell openings:
(2) 20", (1) 24"
Number of tube openings:
2
Number of shell openings:
3

Description

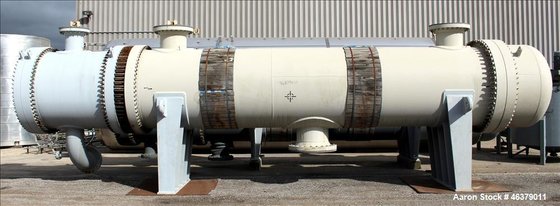

46379011 Unused- Daekyung Machinery & Engineering 4 Pass Shell & Tube Heat Exchanger, 6,633 Square Feet, Carbon Steel, Horizontal. Shell rated 382 psi/ full vacuum at -20 to 650 degrees F. (1122) 1" Diameter x 24' long tubes rated 297 psi/ full vacuum at -20 to 650 degrees F. Openings: shell (2) 20", (1) 24"; tubes (2) 14". Saddle mounted. Serial #DK2007-231, National Board #2480. Built 2008.
