No. Cinova 80 205-12, Cincinnati,
Location:
Salt Lake City, UT
Model:
CINOVA 80 205-12

Specifications

Condition:
used
Stock number:
9656
Feeds:
16 ¼ to 30”IPM
Division:
Metalworking
Electricals:
220/440 V
Knee travel:
18”
Cross travel:
Inventory no:
9656
Approx weight:
5,500#
Main drive motor:
5HP
Taper in spindle:
#50
Approx dimensions:
73” H x 68” L x 73” W
Longitudinal travel:
28”
Vert. spindle speeds:
8100 to 1530 RPM
Horiz. spindle speeds:
16 30 to 2400 RPM
Table working surface:
12” x 56 1/2”

Description

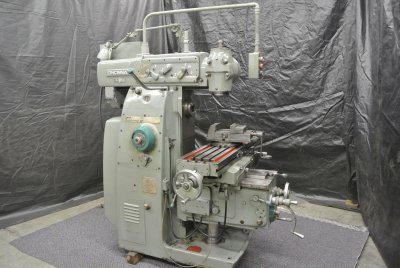

Pre-Owned Cincinnati Horizontal Mill #205
w/ Independent Vertical Head- Power Over Arm
Very Low Hours.
Model:Cinova 80 205-12 Serial No: 10J2P5L-2
General specifications are approximate and are subject to verification.
Table Working Surface:12” x 56 1/2”
Longitudinal Travel:28”
Cross Travel:9”
Knee Travel:18”
Horiz. Spindle Speeds:16 30 to 2400 RPM
Vert. Spindle Speeds:8100 to 1530 RPM
Taper in Spindle:#50
Feeds:16 ¼ to 30”IPM
Main Drive Motor:5HP
Electricals:220/440 V
Approx Weight:5,500#
Approx Dimensions:73” H x 68” L x 73” W
Complete with:
•Arbor and Arbor Support
•Vise
•Power Over Arm- Vertical Head w/ Double Swiveling
•End Mill Holder Misc.
Condition: Low hours and very well cared for. Runs Great
Inventory No: 9656
