Location:
Staufenberg, Germany
Manufacturer:
WALDRICH
Model:
D 2525/4000

Specifications

Condition:
used
Year:
1950
Stock number:
108560
Subcategory:
Others
Subcategory 2:
Shapers

Description

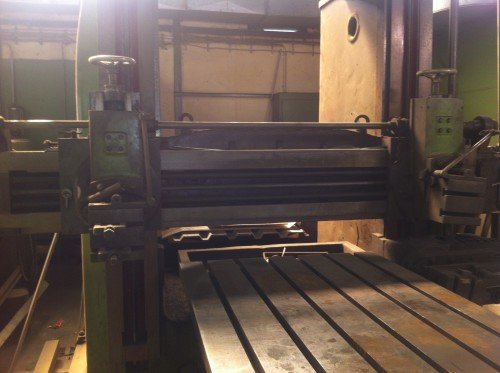

Hydraulic. Double Column Planer Fabr. WALDRICH Type D 2525/4000
Year Built 1950
Technical specifications:
Table size: 4000 x 1120 mm
Stroke length: 4200 mm
gr planing width. 1250 mm
gr passage height. 1250 mm
Torque: 6300 kg
Working speed: 6 - 45 m / min.
Return speed: 8 - 60 m / min.
Feed the hor. Rests horizontally: 0.3 to 15 mm
: Vertical: 0.15 to 7.5 mm
Feed the side supports perpendicular: 0.15 to 7.5 mm
Transverse movement hor. Supports: 1400 mm
Vertical motion hor. Supports: 400 mm
Page support cross motion: 250 mm
Page Support vertical motion: 1300 mm
Transom vertical motion: 1300 mm
Quick adjustment of the crossbeam: 500 mm / min.
Quick adjustment of hor. Supports horizontal: 1800 mm / min.
Quick adjustment of hor. Supports u.
Side supports vertical: 900 mm / min.
Engine power: 30 PS
Weight approx: 31.9 t
External dimensions approx .:: 9500 x 3700 x 3000 mm
With
- Aut steel pedestal.
- 2 Hor.-rests
- 1 page Support
- Aut bed lubrication.
- Cooling means ...
