Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Alzmetall

Specifications

Condition:
used
Stock number:
108516
Subcategory:
Drills
Subcategory 2:
Column drilling

Description

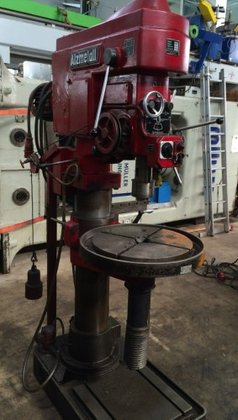

Column Drilling Machine Model ALZMETALL Type AB 5 S
Machine ID: 1287
Technical specifications:
Drilling capacity in ST 60: 50 mm
Drilling capacity in GG 20: 65 mm
Drilling capacity in ST 60: 65 mm
Tapping in ST 60: M 60
Thread cutting in GG 20: M 72
Spindle mount: MK 5
Throat: 385 mm
Table size: 730 x 540 mm
Column diameter: 220 mm
Quill stroke: 240 mm
4 automatic. Feed rates: 0.1 - 0.14 - 0.2 - 0.28 mm / rev
Stepless spindle speeds: 40 - 800 rpm.
Power output 380 V: 3,8 hp
Outer dimensions L x W x H: 1650 x 900 x 2450 mm
Weight approx .: 1350 kg
With
- continuously variable speeds
- automatic feeds
- Thread cutting device
- Cooling system
- Foot switch
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
And are always at your disposal for your questions.
