Location:
Staufenberg, Germany
Manufacturer:
TIMESAVERS
Model:
41 Serie 900 WRD

Specifications

Condition:
used
Year:
2007
Stock number:
108518
Subcategory:
Trimming
Subcategory 2:
Other deburring

Description

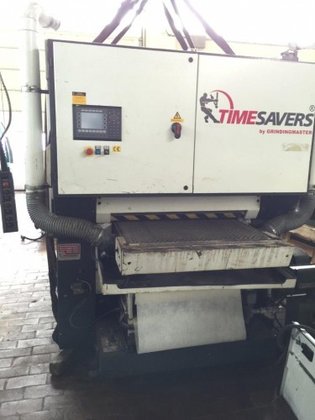

Deburring fabG. TIMESAVERS Type 41 900-WRD
Year 2007
Technical specifications:
Arbeistbreite: 900 mm
Sanding belt dimensions: 1900 x 930 mm
1. Physical
- Contact roller dia .: 180 mm
- Contact roller 65 ° Shore NI genuted
- Fine adjustment (7 mm), lifting and lowering
- Dial Indicator
- Frequency-controlled main motor: 11 kW
- Bearbeitungsgeschwinidgkeit in feed direction: 8 - 22 m / sec.
2. Physical
- - Disc, wet working dia .: 1220 mm
- Frequency-controlled motor: 6.9 kW
- Geschwinidgkeit: 10 - 22 m / sec.
- Motorized height adjustment (80 mm) with tip switch.
feed
- Vacuum table, wet, with water
(Vacuum pump 11 kW)
- Feed belt flat, with holes, oil and heat resistant
- Feed motor 1,3 kW, 1 - 10 m / min.
- Tip switch for forward / rewind the feed carpet
- Abdominal brake
- Height adjustment table frequency controlled (0 - 80 mm)
- Digital display of Geschwinidgkeit
- Digital display of table height
pressure rollers
- Front: resilient pressure rollers with limit switches diam .: 50 mm
- Middle: resilient ...
