VOCO Vogel & Co 25 x 250 in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Vogel presses
Model:
25 x 250

Specifications

Condition:
used
Stock number:
108441
Subcategory:
Hydraulic presses
Subcategory 2:
Pressing and punching

Description

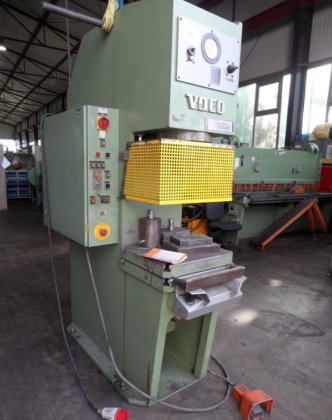

Hydraulic Single Column Press Manufacturer VOCO VOGEL & Co Berlin-Borsigwalde Type 25 x 250
No. 1108
Technical specifications:
Pressing force: 25 t
Table size Standard table: 490 x 450 mm
Built-up table: 480 x 440 mm
Plunger diameter: 120 mm
Throat: 260 mm
Oil filling: 180 l
Outer dimensions L x W x H: 750 x 1400 x 2200 mm
Max pressure: 160 bar (= 25 Mp)
Weight approx.
With:
- Two hand disengagement
- Foot switch
- Adjustable stroke limiter at the bottom
- Adjustable stroke limiter at the top
- Rapid traverse down to the start of the working stroke
- Pressing force adjustable via pressure relief valve
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
