Top Seller
1977 ALZMETALL AB 4 SV
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Alzmetall

Specifications

Condition:
used
Year:
1977
Stock number:
108417
Subcategory:
Drills
Subcategory 2:
Column drilling

Description

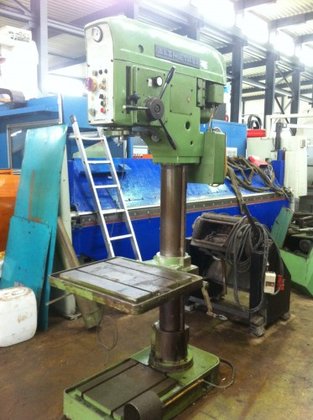

Column drilling machine Make ALZMETALL Type AB 4 SV
Mach. No: 16615 Year of manufacture 1977
Technical specifications:
Drilling capacity in ST 60: 40 mm
Drilling capacity in GG 20: 55 mm
Drilling capacity in ST 60: 55 mm
Tapping capacity ST 60: M 42
Tapping capacity GG 20: M 60
Spindle support: MK 4
Screw stroke: 180 mm
Throat: 345 mm
Spindel speeds infinitely: 100 - 1280 rpm.
4 automatic feeds: 0.15 - 0.36 mm / rev
Table size: 720 x 560 mm
Column diameter: 160 mm
Base plate: 870 x 710 mm
Drive power: 3,6 / 3,4 kW
Weight approx .: 610 kg
With
- Thread cutting device
- 4-spindl. Row drilling head SAWAS Type SBS Gr. 2
Translation 1: 2, No: 10957
Distance 65 mm, 20 mm recording
- Tensioning device pneum. On table
- Foot switch
- Cooling system
- Flange spindle
Only used for brass thermometers!
Used, despite the year of construction in very good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
