Location:
Staufenberg, Germany
Manufacturer:
Emco lathes
Model:
Compact 10

Specifications

Condition:
used
Stock number:
108351
Subcategory:
Traditional lathes

Description

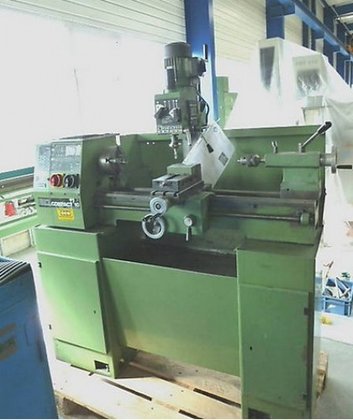

Lathe Fabr. EMCO Type Compact 10
with lead screw
Technical specifications:
Distance between centers: 650 mm
Center height: 140 mm
Swing over bed: 280 mm
Swing over cross slide: 170 mm
Bed width: 155 mm
Leitspindeldurchmesser: 20 mm
2 longitudinal feeds: 0.08; 0.17 mm / rev
Main Spindle bore: 26 mm
Spindle internal taper: MK 4
6 spindle speeds: 70-1700 U / min.
Quill diameter: 30 mm
Quill stroke: 80 mm
Pinoleninnenkonus: MK 2
Lateral: 10 mm - 8 mm
3 Thread: 0.25; 1.5; 3.0 mm
18 metric threads: 0,3 - 5,0 mm
21 inch dimensions: 48-5 t.p.i.
8 module thread: 0,5 - 1,5
Engine power: 2 kW:
Weight lathe approx .: 150 kg
External dimensions: 1400 x 800 x 1600 mm
With
- Undercarriage
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
