Location:
Staufenberg, Germany
Manufacturer:
Lambert gear cutting
Model:
82 Wälzfräsmaschine

Specifications

Condition:
used
Year:
1980
Stock number:
107854
Subcategory:
Hobbing
Subcategory 2:
Gear cutting machines

Description

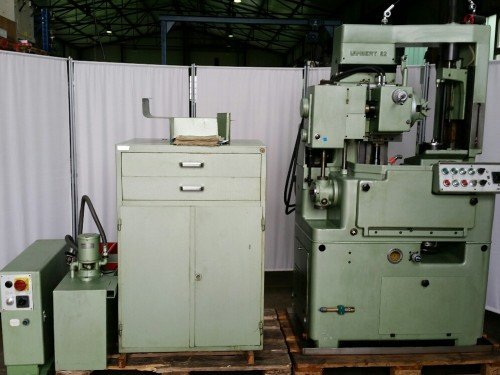

Universal gear hobbing machine Fabr. LAMBERT Type 82
: 8682, Year 1980
Hobbing machine for straight and oblique teeth, and conical
Worm gears and worm
Technical specifications:
gr. to be milled Direction workpiece diameter in tooth height 5 mm
and cutter diameter 40 mm:
- With milling Quick delivery: 150 mm
- Without cutter Quick delivery: 174 mm
Router Quick delivery: 12 mm
gr Milling length:. 120 mm
. Gr way of Frässchlittens: 130 mm
Milling capacity in steel: Module 2.25
minimum and maximum number of teeth in:
- Normal table: 6-800
- Special table: 2-200
Max. Cutter diameter: 68 mm
9 Cutter speed: 200-1050 rpm
Feed at normal table
radial / longitudinal: 0,05 - 0,8 / 0.1 to 1.6
Feed with special table
radial / longitudinal: 0,01 - 0,32 / 0.2 to 0.64
Helix angle for helical gears and Li Re: 0 - 90 °
. Gr slope when milling screw with disc cutters: Module 4/12 mm
Total power requirement: 2.8 kW
Operating voltage: 3 x 380 V
Machine weight: approx: 1.5 t
Required space: approx L ...
