MANURHIN Dekomat 50 Revolverdrehautomat in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
MANURHIN
Model:
Dekomat 50 Revolverdrehautomat

Specifications

Condition:
used
Year:
70
Stock number:
103488

Description

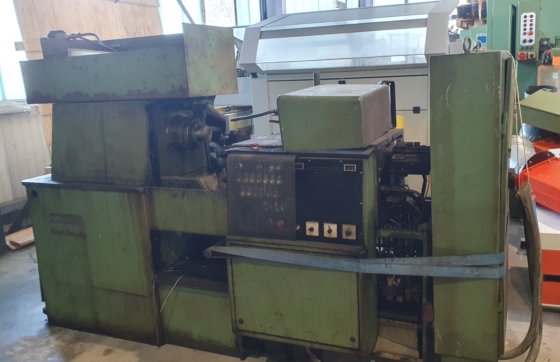

Revolver automatic lathe MANURHIN Type Dekomat 50
Machine No: 3005-157
Technical specifications:
Spindle bore: 50 mm
Gr. Rod outlet: 42 mm
Gr. Diameter of chuck: 160 mm
Gr. Working diameter: 120 mm
Spindle drive Engine: 4/8 hp
Number of programmed speeds: 4
Number of speed groups: 5
Speed ​​range: 75 - 3200 rpm.
Number of turret positions: 8
Gr. Longitudinal stroke: 150 mm
Gr. Plan stroke: 49.7 mm
Gr. Radius difference during copying: 17 mm
Number of longitudinal feeds per cycle: 3 (4 *)
Number of feeds per cycle: 2 (1 *)
Feed range: 0-425 mm / min
Feed range: 0-150 mm / min
Rapid traverse: 7 mm / min
Outside dimensions without bar feed: 2300 x 1200 x 1500 mm
Weight: 2000 kg
With:
- sep. Control cabinet
- Plug connector control
second hand
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
