1979 WEILER Praktikant in Staufenberg, Germany

Top Seller
1979 WEILER Praktikant in Staufenberg,
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Weiler lathes
Model:
Weiler PRAKTIKANT

Specifications

Condition:
used
Year:
1979
Stock number:
108183

Description

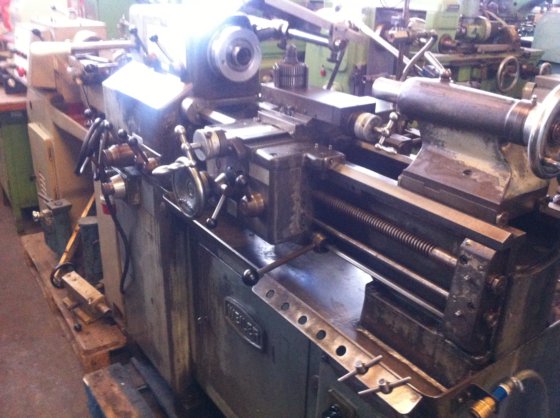

L. Z.-Turning Machine Manufacturer WEILER Type Praktikant
Year of construction 1979
Technical specifications:
Tip height: 140 mm
Tip width: 500 mm
Swing diameter over bed: 240 mm
Rotating diameter over carriage: 160 mm
Spindle mount: DIN 55022/5
Spindle bore: 36 mm
16 Spindle speeds: 42 - 2000 rpm.
18 longitudinal feeds Series 1: 0.019 - 0.912 mm
Series 2: 0.040-1.920 mm
Plan feeds: half values
27 metric thread pitches: 0.25 - 12 mm
52 inch thread: 2 - 72 gg / 1 "
9 Module threads: 0.125 - 4 M
Drive power: 1.0 / 1.6 kW
Dimensions L x W x H: 1420 x 670 x 1200 mm
Weight approx .: 610 kg
With
- Collet chuck with clamping collet set
- Three-pack rotary chuck
- Multifix steel holder with 4 inserts
- co-rotating core tip
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
