Location:
Staufenberg, Germany
Model:
FVA 4 LA

Specifications

Condition:
used
Year:
1979
Stock number:
107913
Subcategory:
Milling

Description

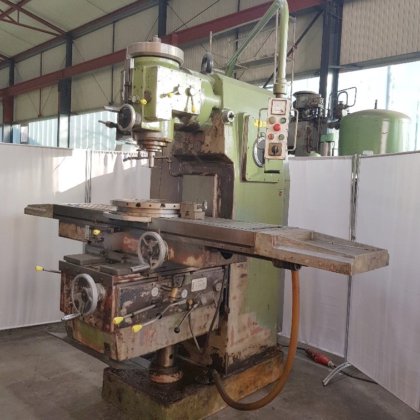

Vertical milling machine Fabr IBERIMEX -. LAGUN Type FVA 4 LA
2496 Year 1978
Technical specifications:
Table size: 1800 x 380 mm
Table travel X: 1320/1300 mm
Tischquerweg Y: 360/340 mm
Tischsenkrechtweg Z: 428/420 mm
Spindle taper: ISA 50
Speed ​​range: 28-1400 rpm.
12 longitudinal and Quervorschübe: 12 - 780 mm / min.
12 Senkrechtvorschübe: 3.6 to 234 mm / min.
Rapid longitudinal and transverse: 3000 mm / min.
Rapid vertical: 900 mm / min.
Distance spindle / table: 555 mm
aut Quill:. 127 mm
3 aut Pinolenvorschübe:. 0.05 / 0.1 / 0.2 mm / rev.
Milling head to both sides pivotable about: 45 °
Motor power: 12.5 hp
Feed motor: 4.0 HP
Weight approx .: 4,3 t
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
