Top Seller
1987 STANKO 3 D 722
Location:
Staufenberg, Germany
Price:
No price
Model:
3 D 722 1000 x 320

Specifications

Condition:
used
Year:
1987
Stock number:
107106
Subcategory:
Grinders
Subcategory 2:
Surface grinders

Description

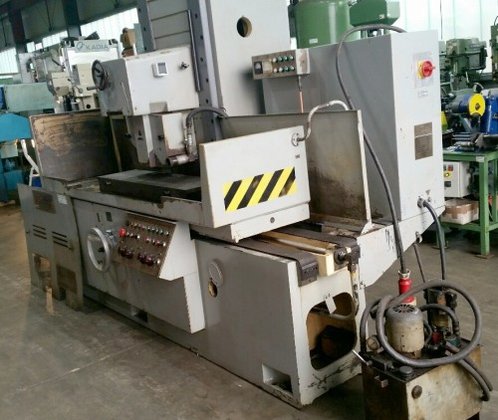

Flat grinding machine STANKO Type 3 D 722
Manufacturer: 39544, year of construction 1985
Technical specifications:
Working width: 1000 x 320 x 400 mm
kl./gr. Distance between spindle center - clamping table: 190/630 mm
Table area: 1000 x 320 mm
kl./gr. hydr. Longitudinal adjustment of the table: 300/1050 mm::
Mounting surface of the magnetic plate: 900 x 320 mm
Height of the magnetic plate: 120 mm
Gr. Vertical adjustment of the spindle head: 440 mm
Gr. Cross-threading of the grinding spindle: 400 mm
kl./gr. Outer diameter of the grinding wheel: 325/450 mm
Drm. Wheel bore: 203 mm
Speed ​​of grinding wheel: 1500 rpm.
Continuous longitudinal movement of the table: 2.0 - 40 m / min.
Continuous feed of the spindle head: 0.5 - 3.0 m / min.
Vertical rapid adjustment of the spindle head: 406 mm / min.
Drive power: 10 kW
Outside dimensions approx .: 3300 x 2020 x 2290 mm
Weight approx .: 7100 kg:
With
- Magnetic plate
- hydraulics standing separately
- Control cabinet on the machine
Used, in good condition
Price on request.
