1972 WOTAN B 75 T Iberica in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Wotan machining centers
Model:
B 75 T Iberica

Specifications

Condition:
used
Year:
1972
Stock number:
107541

Description

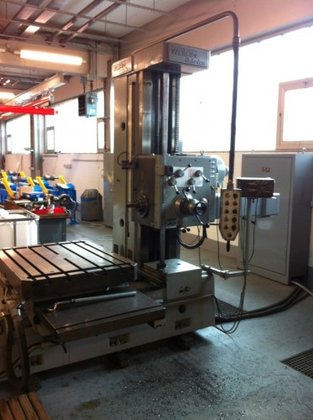

Table drilling and milling machine WOTAN Type B 75 T Iberica
Serial number: 58995 Year of manufacture 1972
Technical specifications:
Spindle diameter: 75 mm
Spindle mount: ISA 40
Gr. Drilling depth / spindle stroke: 550 mm
Table cross-way = X: 800 mm
Table longitudinal travel = Y: 1000 mm
Spindle support travel = Z: 800 mm
Table size: 1000 x 800 mm
Max. Table load: 1500 kp
Drilling spindle speeds: 12.5 - 1000 rpm.
Drilling and milling feeds: 0.02 - 8.0 mm / min.
Rapid traverse: 2.4 m / min.
Drive power: 6.7 kW
Weight approx .: 6.5 t
Outside dimensions approx .: 3900 x 2600 x 2800 mm
With
- Angle milling head HURON with extension
- many clamping tools
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
And are always at your disposal for your questions.
