Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Wotan machining centers
Model:
B 75 / 105 M - Teletrol II

Specifications

Condition:
used
Year:
1969
Stock number:
100900

Description

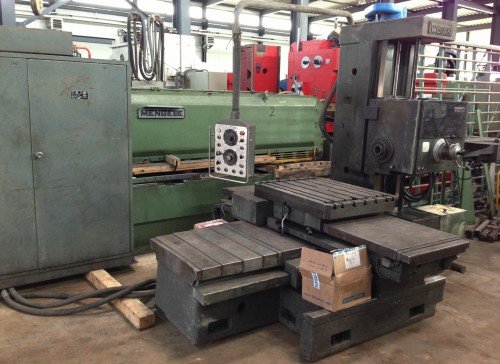

Wanted: Horizontal Boring and Milling Machine WOTAN Type B 75/105 M - Teletrol II
Serial number: 58474 Year of manufacture 1969
Technical specifications:
Working distance X vertical: 1200 mm
Working distance Y longitudinal: 800 mm
Working distance Z Screw head travel: 800 mm
Working spindle diameter: 105 mm
Cone in the spindle: ISO 50
kl./gr. Distance from center to clamping surface: 0/800 mm
Spindle speeds infinitely variable: 16 - 1250 rpm.
Feed rates infinitely: 0.02 - 8 p.M.
Tool holder on the spindle sleeve: 171.45 mm
Gr. Removing the spindle sleeve to the riser: 1800 mm
Clamping surface: 800 x 1000 mm
Total power requirement approx .: 13 kW
Voltage / three-phase current: 380 V / 50 Hz
Required area: 4.1 x 3.6 x 2.5 m
Weight approx .: 9000 kg
With
- Digital display
- Cooling system
second hand
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
