Top Seller
MATRA-FANUC TAPE-CUT L in Staufenberg,
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Fanuc
Model:
TAPE-CUT L

Specifications

Condition:
used
Stock number:
107432
Subcategory:
Others
Subcategory 2:
Wire edm

Description

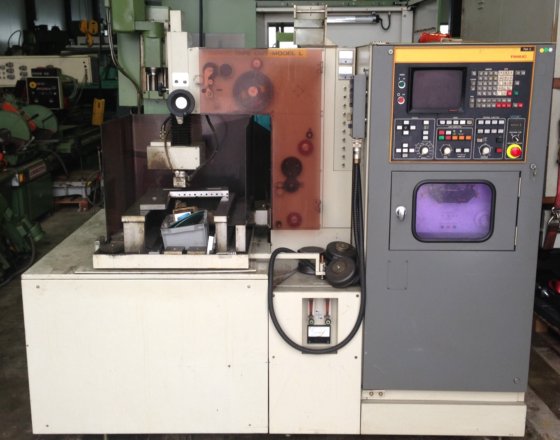

CNC wire cutting machine MATRA-FANUC type TAPE-CUT L
Year of construction 1982
Technical specifications:
Gr. Workpiece dimension: 650 x 450 x 150 mm
Gr. Workpiece weight: 300 kg
Table travel: 500 x 320 mm
Max. Table speed: 360 mm / min.
Wire diameter: 0.05 - 0.25 mm
Wire tension: 80 - 1000 g
Wire feed: 0 - 5 m / min.
Max. Cone angle: 5 degrees
Controlled axes: X, Y, U and V axis
Simultaneously controlled axes: 4
Smallest input unit: 0.001 mm
Smallest input: 0.001 mm pulse
feed values
Cutting feed: 0.01 - 25 mm / min
Rapid traverse: 360 mm / min
Manual feed: 0.1 - 200 mm / min
With
- CNC control FANUC OM
- graphical representation
- pulse generator 0 - 15 steps
- Dielectric / tank capacity 160 l
- Dielectric cooler 800 kcal / hour.
Used, in good condition despite the year of manufacture
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
