ERNST EGM 3M 1400 2B
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Ernst
Model:
EGM 3M 1400 2B (Bürstenwalzen)

Specifications

Condition:
used
Stock number:
107405
Subcategory:
Trimming

Description

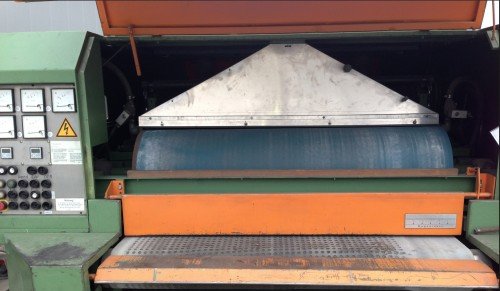

Brush- / Broadband Grinding Machine Manufacturer ERNST Type EGM 3M 1400 2B
Mach. No: 28113 Year of manufacture 1985
Drier
Technical specifications:
Grinding width: 1380 mm
Gr. Workpiece height: 90 mm
2 brushing speeds: 570/1160 rpm.
Belt speed infinitely variable: 3 - 18 m / min
Abrasive paper width: 1400 x 1690 mm
Movement of the grinding cylinder: red / oscillating
Transport belt size: 5115 x 1400 mm
Height of the table: 950 mm
Table size: 1850 x 1400 mm
Drive power of the grinding roller: 7.5 kW
Drive power of the brush motor: 4.0 kW
2 height adjustment: 0.25 kW
Oscillation of the grinding roller: 0.37 kW
Drive capacity of the compact deduster: 3.3 kW
Weight approx .: 4500 kg
Dimensions L x W x H: 2650 x 2700 x 2700 mm
With
- Oscillation
- 2 brush roller sets made of VA
- magnetic track
- Vacuum system
- conveyor belt control
- extraction unit. Cellar type UNI-Star compl. Mt suction pipes
Used, in very good condition
Location Staufenberg
Price on request.
Delivery: ex stock or
