Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Hurth
Model:
LFV 3

Specifications

Condition:
used
Stock number:
107410
Category:
Machine Tools equipment in Germany
Subcategory:
Groove cutters

Description

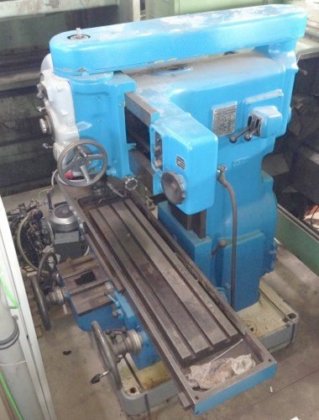

Slot milling machine Fab. HURTH Type LFV 3
No: 3566 estimated year of manufacture 1963
Technical specifications:
Groove width max .: 30.35 mm
Travel distance X: 550 mm
Travel Y: 300 mm
Travel Z: 400 mm
Spindle mount ISO: SK 40
Milling slide: 240 mm
Depth feed screw stroke: 0-110 mm
Table size: 300 x 1200 mm
Table width: 350 mm
Throat: 415 mm
8 Spindle speeds: 90-1000 rpm
9 crank feeds: 1.4-22.4 p. minute
9 table feeds lengthwise: 10.9-163 mm / min
Table drive: 0.37 kW
Spindle drive: approx. 2.5 kW
Spindle projection: 410 mm
Cutter diameter: max. 50 mm
Knife head diameter: max. 110 mm
Spindle drive approx .: 2.5 kW
Outside dimensions approx .: 1,5 x 1,45 x 1,95 mm
Weight approx .: 2.2 t
With:
- depth milling device
- Crank drive of the milling carriage
- autom. longitudinal feed
Used, in good condition despite the year of construction
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
