Location:
Staufenberg, Germany
Manufacturer:
Mubea
Model:
KBL 45-20 Optima F

Specifications

Condition:
used
Year:
1977
Stock number:
107276

Description

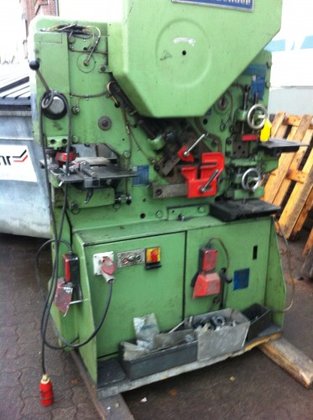

5x comb. Steelworker Fabr. MUBEA type KBL 45/20 Optima F
: 42629 Year 1977
Technical specifications:
FLACHSTAHL SCISSORS
Power: 100 x 15/190 x 12 mm
Blade length: 220 mm
STEEL BAR CUTTER
Round steel: 35 mm
Square steel: 32 mm
Angle and T-iron: 65 x 9 mm
U, I, and I PE: 80 mm
DREIECKAUSKLINKER
Plate thickness: 11 mm
Angle steel: 70 x 10 mm
Klink Depth: 60 mm
PROFILE STEEL SCISSORS
Angle steel: 100 x 11 mm
Angle steel 45 °: 65 x 8 mm
T-Steel: 90 x 10 mm
PUNCHING
Punching power: 45 t
Stroke: 24 mm
punches holes: 30 in 12 mm
or: 24 in 15 mm
Projection: 320 mm
General data:
Working speed: 55 strokes / min
Motor power: 2.2 kW
Dimensions: 1350 x 600 x 1720mm
Weight approx .: 1370 kg
With
- Dreieckausklinker
- Stop table to the punch
- Supporting tables at the flat bar shear and notching
- Various punches and dies
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
