Location:
Staufenberg, Germany
Manufacturer:
TAGLIABUE
Model:
TT-3-1300

Specifications

Condition:
used
Stock number:
107213
Subcategory:
Grinders
Subcategory 2:
Belt sanders

Description

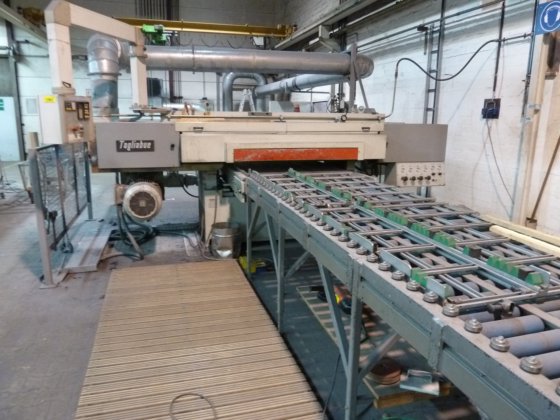

CNC belt sander Fabr. TAGLIABUE type TT-3-1300
: E6 / 36886 Year 1996
Technical specifications:
Max. Band width: 1300 mm
Max. Passage: 1300 mm
Grinding range: 4 - 350 mm
continuously variable tape speed: 6-12 m / min.
variable feed speed conveyor belt d: 5,0 - 25 m / min..
Sanding belt size: 8500 x 150 mm
Segment belt size: 6530 x 140 mm:
Breitbandzuführtisch: 5000 x 1200 mm
Removal roller conveyor table: 4000 x 1400 mm
Air Consumption: 1400 l / min.
Air extraction: 9000 m³ / h
Performance of the vacuum pump: 7.5 kW
Power band motor: 3.0 kW
Total installed power: 30 kW
Weight approx .: 6000 kg
Machine width: 5000 mm
With
- CNC control Fabr Syel.
- Vacuum Material Voltage
- Extraction and filter system Fabr Ticnomac, 13 kW, Bj 96th.
very little used, in very good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors ...
