1994 FICEP LPP 803 2N CNC Stahlplatten Stanzanlage in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
FICEP presses
Model:
LPP 803 2N CNC Stahlplatten Stanzanlage

Specifications

Condition:
used
Year:
1994
Stock number:
107142
Subcategory:
Punches

Description

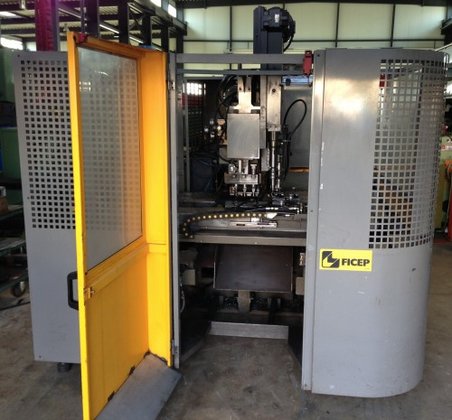

CNC Steel Plate Punching Machine Manufacturer FICEP Type LPP 803 2N
Masch. Nr: 23376 Year of construction 1994 with drilling device and marking device
Technical specifications:
Punching force for all tools: 800 kN
minute Material thickness with standard equipment: 3 mm
Max. Punchable material thickness: 25 mm
Positioning stroke of the X and Y axes without repositioning: 600 x 800 mm
Max. Plate weight with standard positioning speed: 150 kg
Max. Plate size with programmatic repositioning: mm x 600 mm
Angular dimensions min./max .: 60 x 60/150 x 150 mm
Length min./max .: 100/800 mm
Number of punching tools: 3
Punching capacity:
Steel 400 N / mm2 Cutting strength (mm x thickness): 30 x 20 mm
Max. Executable diameter with standard equipment: 32 mm
Working height: 1000 mm
drilling capacity:
Single spindle drilling unit with changeover motor
Max. Panel thickness: 40 mm
Max. Drilling diameter: 40 mm
2 Spindle speeds: 210 - 420 RPM
Engine power: 3,8 / 4,8 kW
MARKIERKAPAZITÄT:
Max. Marking force: 800 kN
