1997 FMB HEFI MBZ 72/80
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
FMB machining centers
Model:
MBZ 72/80

Specifications

Condition:
used
Year:
1997
Stock number:
107031

Description

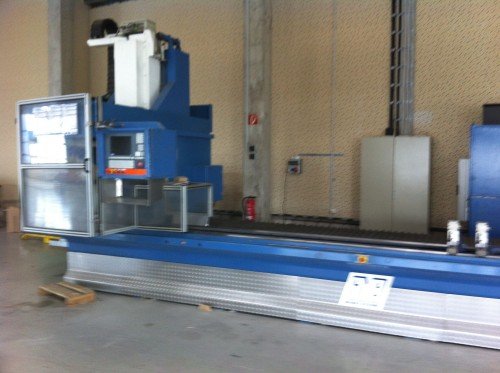

5-axis Profile Machining Center Model FMB HEFI Type MBZ 72/80
Machine ID: 8304 Year of manufacture 1997

Technical specifications:
Travel X: 7200 mm
: Y: 1000 mm
: Z: 370 mm
Working area: 7200 x 350 x 200 mm
Spindle speed max. : Up to 30000 rpm.
Spindle mount: HSKE 40
Number of tools: 12
Tool diameter: up to 35/1 x 150 mm
Tool length: 150 mm
Rapid traverse XYZ:: 36/26/24 m / min.
Spindle drive: 7.5 kW
Connection: 18 kVA
Weight approx .: 8,0 t
Outside dimensions approx .: 8000 x 2400 mm
With
- 5-axis machining
- additional high frequency head with 11 kW
- Cooling device for HF spindles
- Hydraulic unit for tool clamping
- Min. Spraying device - selectable
- Tool changer with 12 seats
- 8 pneumatic tensioners
- Crash protection device for clamping elements
- Multi-station operation, pendulum processing
- Short-thread milling device
- PC control with 14 "color monitor
- graphical user interface with easy to use
Menu user interface
