Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
GRIEBEL
Model:
SAS 75-30-4

Specifications

Condition:
used
Year:
1981
Stock number:
107011
Category:
Machine Tools equipment in Germany
Subcategory:
Folding machines

Description

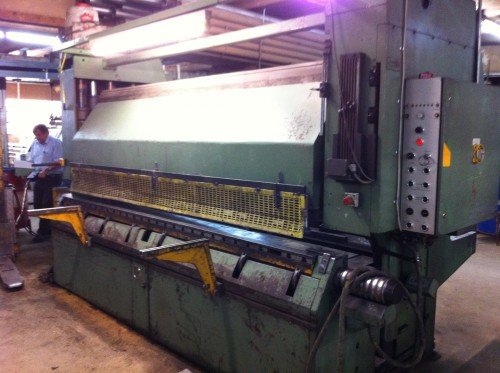

3-way combined hydr. Sheet metal working machine
Manufacturer: GRIEBEL Type SAS 75-30-4 Year of manufacture 1981
Technical specifications:
POWER OUTPUT
Working pressure: 75 t
Working length: 3050 mm
Throat: 120 mm
Stroke: 270 mm
Feed speed: 37 mm / sec.
Working speed: 0 - 30 mm / sec.
Return speed: 45 mm / sec.
Number of angular programs: 6
POWER SWIVELING MACHINE
Length: 3050 mm
Plate thickness: 3.0 mm
Throat: 400 mm
Lifting of upper beam: 290 mm
Feed rate of upper beam: 37 mm / sec.
Return speed of upper beam: 42 mm / sec.
Working speed of bending beam: 45 ° / sec.
Number of bending programs: 6
PERFORMANCE
Cutting length: 3050 mm
Max. Plate thickness: 4.0 mm
Cutting angle: 1 ° 20 '
Knife strokes: 10 - 15 H / min.
Number of holding devices: 20
Pressure of the hold down: 250 kp
Throat: 270 mm
GENERAL DATA:
Electrostroke adjustment: 750 mm
Power consumption: 10 kW
Weight: 9,1 t
Outside dimensions approx .: 4195 x 2350 x 2370 mm
Used, in very good condition
